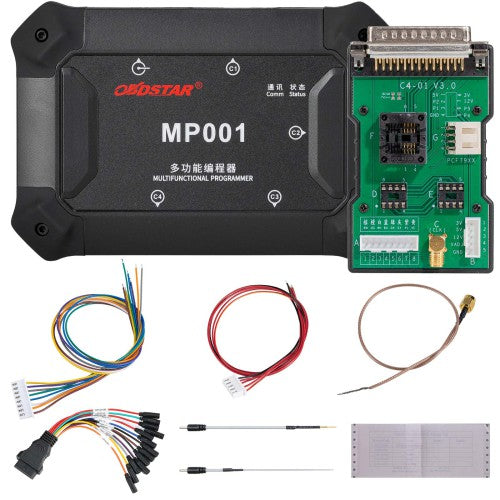

OBDSTAR MP001 Set (MP001 Programmer with ECU Bench Jumper)

OBDSTAR MP001 Multifunction Programmer

The OBDSTAR MP001 is OBDSTAR's latest-generation multifunction programmer, designed to expand the capabilities of your diagnostic tablet for advanced EEPROM, MCU, ECU, immobilizer, and data processing functions. It combines the functionality of the P002, P003, and P003+ adapters into one versatile device, making it an essential accessory for professional automotive locksmiths, ECU programmers, and repair shops.

Compatible with Passenger Vehicles, Heavy Duty Trucks, Motorcycles, Marine (Jet Ski), and Electric Vehicles, the MP001 works seamlessly with a wide range of OBDSTAR diagnostic platforms.

---

Compatible OBDSTAR Devices

The MP001 is fully compatible with:

• OBDSTAR DC706

• OBDSTAR P50

• OBDSTAR MS80

• OBDSTAR MS50

• OBDSTAR MK70

• OBDSTAR MotoMaster

• OBDSTAR X300 Pro4

• OBDSTAR X300 Classic G3

---

Key Functions

The MP001 supports a wide range of advanced programming and data processing operations, including:

• EEPROM Read & Write

• MCU Read & Write

• ECU Read & Write

• ECU Clone

• ECU Data Processing

• Immobilizer Data Processing

• PIN Code Reading

• Key Renewal

• IMMO Synchronization

• Dashboard Mileage Calibration

• Steering Angle Sensor (SAS) Reset

• Mercedes-Benz FBS3 Key Programming

• RH850 / V850 Data Read & Write

• Car, Motorcycle, Marine, Heavy Duty, and Electric Vehicle ECU Data Read/Write

---

Features & Benefits

All-in-One Adapter

The MP001 combines the functionality of:

• P002 Adapter

• P003 Adapter

• P003+ Adapter

This eliminates the need to purchase multiple adapters while providing the same capabilities in one compact solution.

---

Automatic Configuration with DC706

When connected to the OBDSTAR DC706, simply plug in the MP001.

The DC706 automatically:

• Detects the programmer

• Updates the firmware when required

• Configures the MP001 for the selected ECU

No manual setup is required.

---

Easier Chrysler GPEC2 Programming

When reading or writing Chrysler GPEC2 ECMs, the MP001 does not require a 120Ω resistor between the CAN High and CAN Low wires.

This simplifies the setup compared to the older P003/P003+ adapters.

---

Required for Certain Airbag ECU Programming

When using the OBDSTAR P50 to write data to supported RH850 airbag controllers such as:

• R7F7016863

• R7F7016843

• R7F7016443

• R7F701330A

the MP001 programmer is required.

---

Motorcycle Mileage Correction

For mileage correction on the Honda C125 BIZ (2019) with a 93C66 EEPROM, the MP001 is required when using:

• MS80

• MS50

• MK70

---

RH850 Key Programming Support

The MP001 is also required when programming RH850-based keys on supported:

• Ford

• Nissan

• Renault

using the OBDSTAR X300 Pro4 together with the RH850 Kit.

---

Why Choose the MP001?

• Combines P002, P003, and P003+ into one device

• Supports advanced EEPROM, MCU, and ECU programming

• Automatic firmware configuration with DC706

• Simplifies Chrysler GPEC2 programming

• Required for many advanced IMMO, ECU cloning, and airbag operations

• Professional-grade solution for locksmiths, programmers, and repair shops

---

Important Notes

• The MP001 includes the functionality of the P002, P003, and P003+ adapters.

• Different OBDSTAR tablets require their corresponding configuration software.

• Function availability depends on the diagnostic tablet model and software authorization installed.
