OBDSTAR MP001 Kit with MP001 Programmer+C4-01 Main Unit for DC706!

We present you with MP001 Programmer for DC706 Kit!  Recommend upgrade for P003 adapter, Requires breakout cable to connect to modules not included with this kit that comes with P003! Available now! shipping from Houston, TX

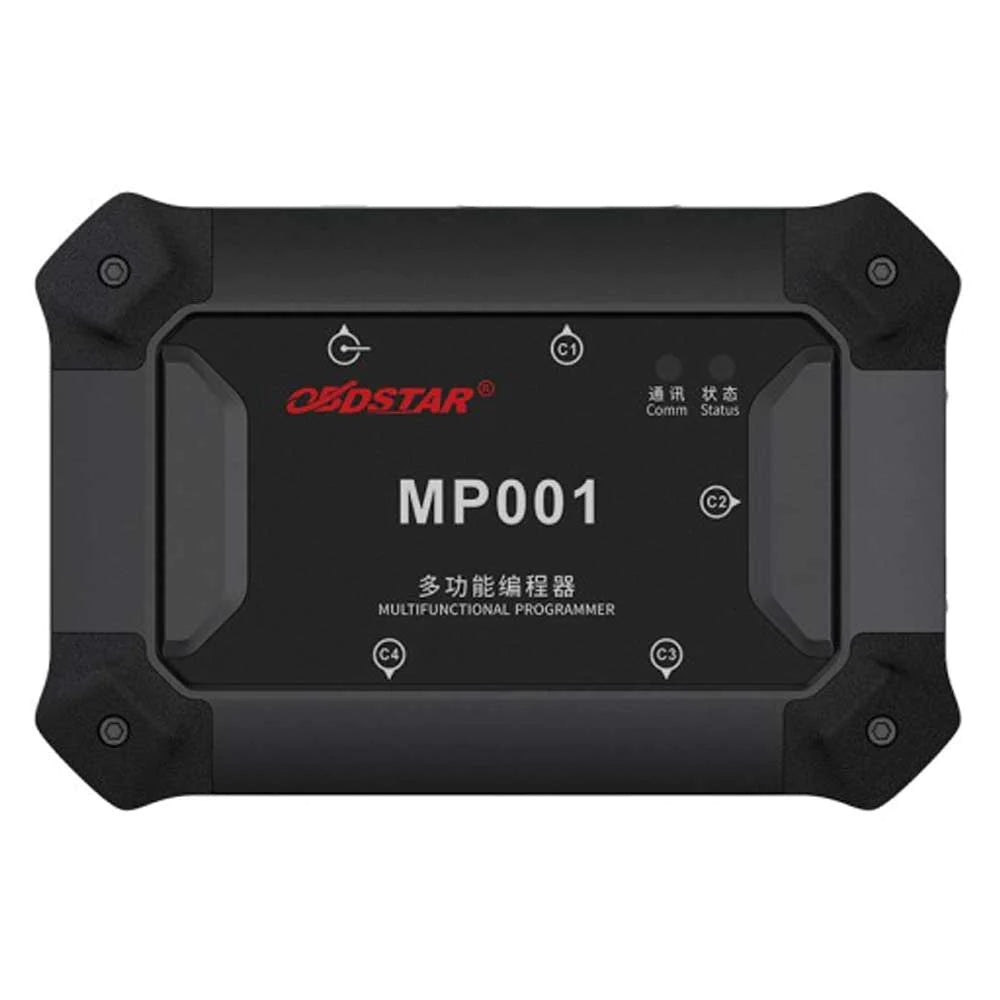

OBDSTAR MP001 Kit with MP001 Programmer+C4-01 Main Unit for DC706

MP001 is the latest automotive multi-function programmer developed by OBDSTAR. It fully supports EEPROM/MCU reading and writing/cloning/data processing for automobiles, commercial, new energy, motorcycles, marine (motorboats), etc., and is compatible with the P002 adapter (Toyota/Ford all-in-one adapter, Honda/Yamaha/Suzuki all-in-one adapter) and P003 adapter (some models of engine/gearbox clone K/CAN conversion, BOOT mode reading and writing) functions.

Software Function:

• EEPROM/MCU reading and writing
• Key flashing
• Steering angle repair
• Body computer data processing
• Immo off
• Pincode reading
• Battery module repair
• Instrument repair
• More functions are under development.

Specification:

CPU	STM32F407VET6

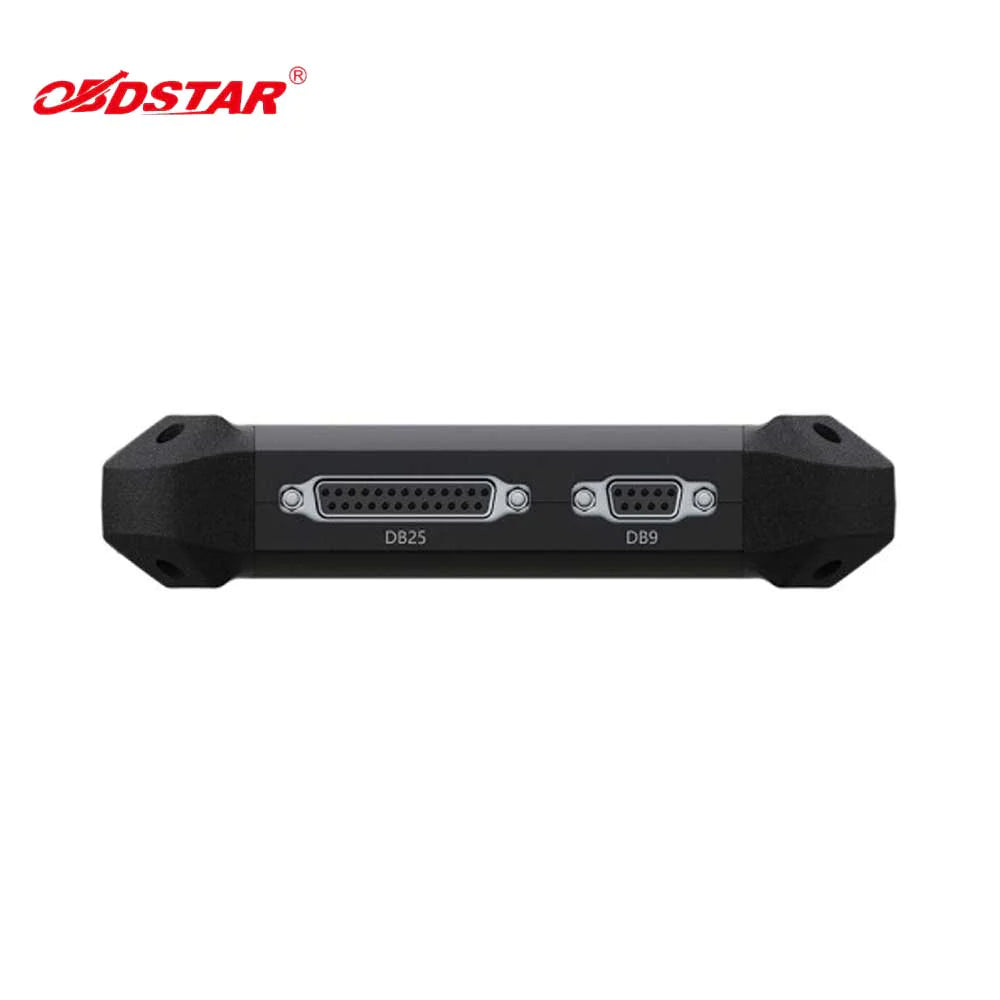

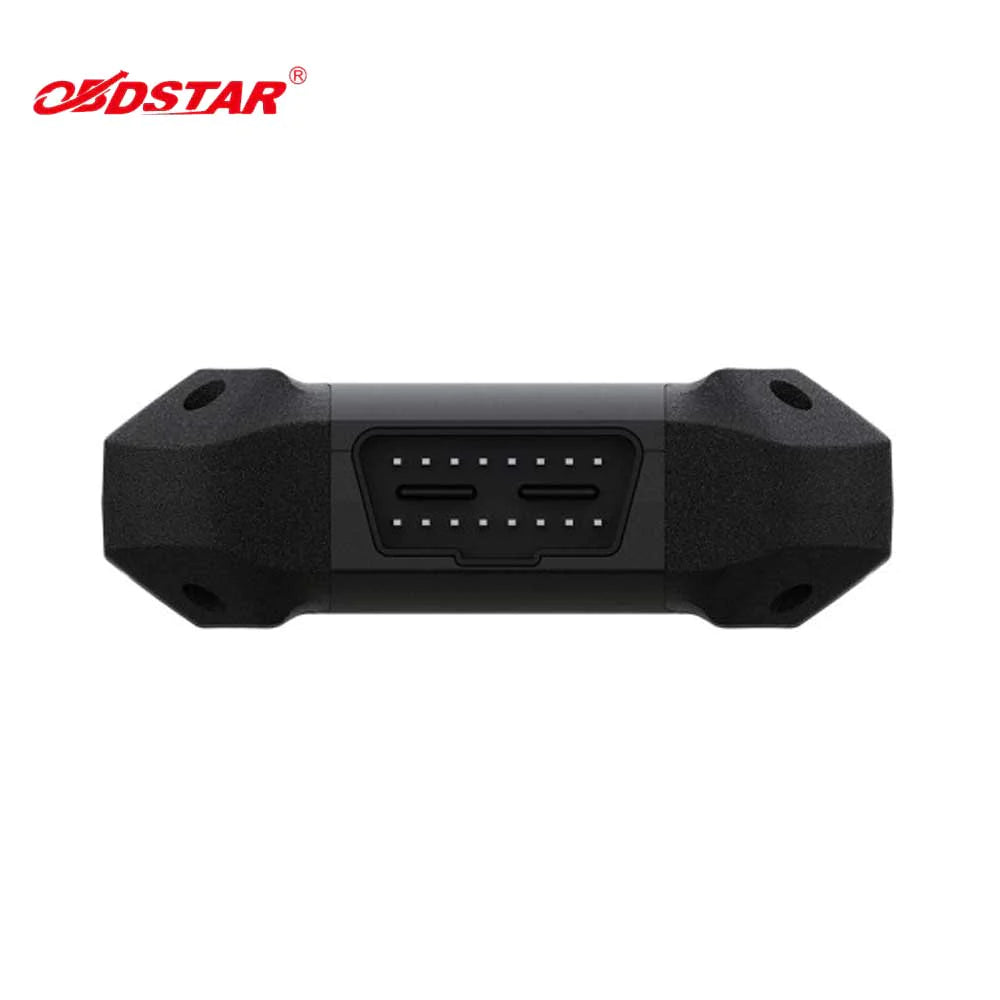

Connector	DC，OBD female，OBD male，DB9，DB25
Input voltage	DC 12V/24V
Output voltage	500mA
Weight	260g
Working temperature	-10℃~55℃
Device Size	165*110*35mm

Package List:

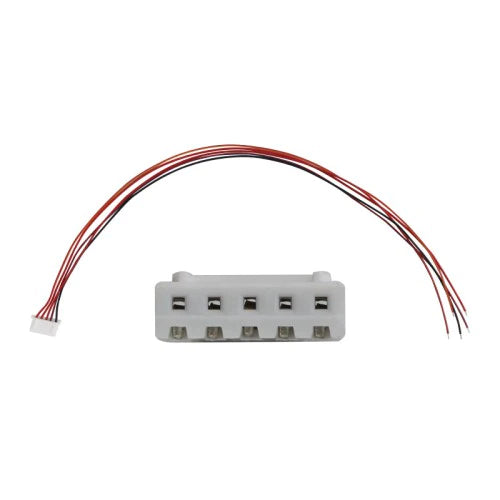

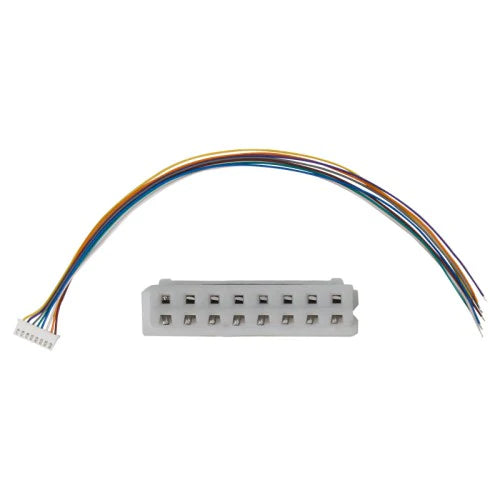

• W004 cable
• W005 cable
• W006 cable

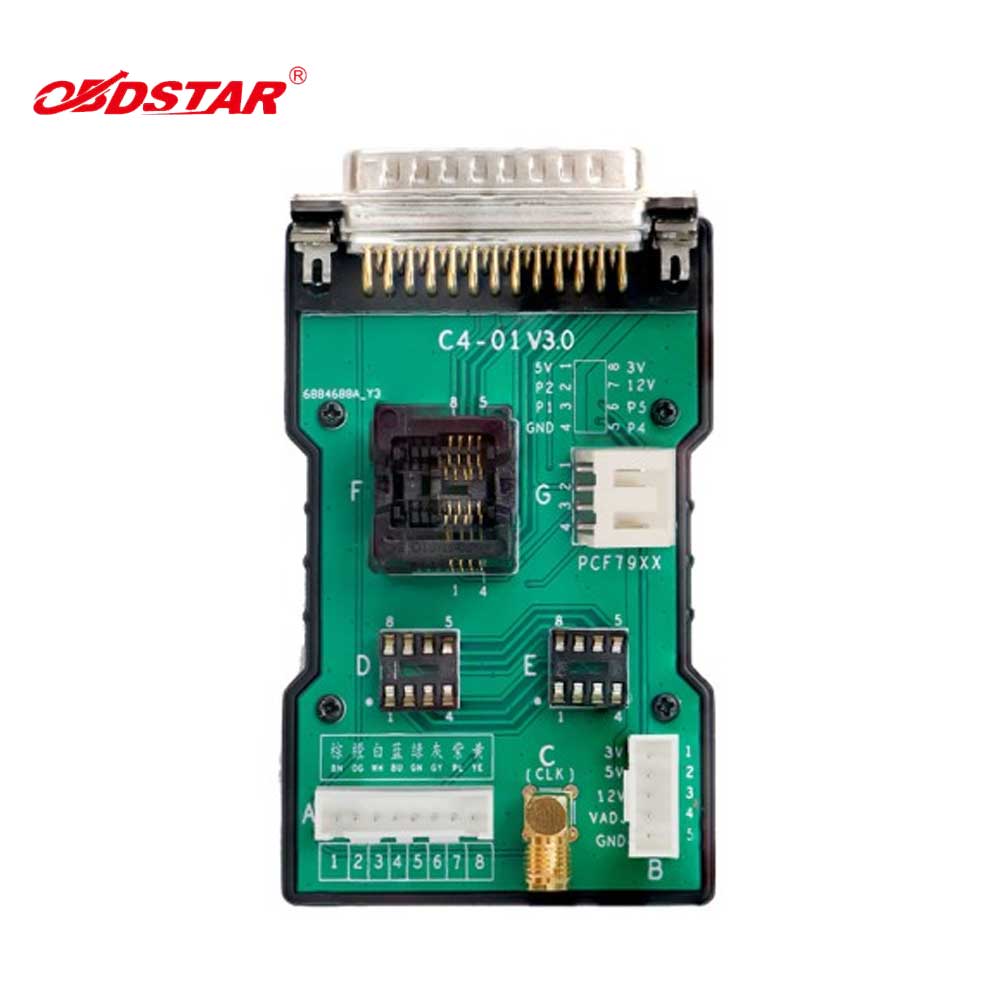

• C4-01 board
•


Note:

• Different tablet device models require different configuration software.
• To use MP001 programmer, you must have ECU bench jumper cables.
