OBDStar - KEY MASTER G3 - Key Programmer - A2 Package - NEW - 2 Years Of Subscription

Our #1 Recommend IMMO Tool!

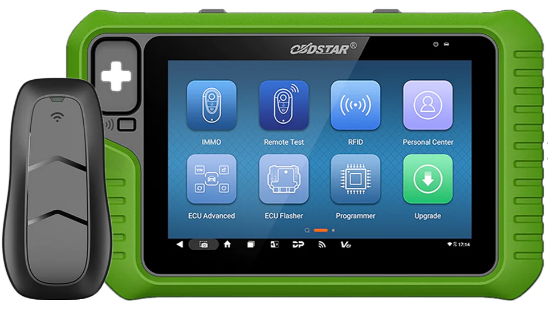

KeyMaster G3 is the new generation intelligent scanner from OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.

Supported Vechicle list:

G3 Supported Vehicle List (Right Click - Save As)

• Supported Vehicle Types:
  • Car
  • HD
  • E-Car
  • MOTO
  • Marine (jet-ski)
• Software Functions:
  • Support Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II, etc.
• Hardware Advantages:
  1. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test, and RFID.
  2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High-Performance VCI Processor.
• Advanced Functions (Note some advanced functions may require software or adapter purchases for functionality) :
  1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET, and others.
  2. Support Marine key programming function for BRP, KAWASAKI, YAMAHA, and others.
  3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO, and others.
  4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP, and others.
  5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled.
  6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3.
  7. Support pin code reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN, and Samsung QM6\SM6 models.
  8. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform, and other functions are available.



Feature	KEY MASTER G3	KEY MASTER DP PLUS
Operation system	Android 11	Android 5.1.1
OTA	✓	×
Screen recording	✓	×
Wireless screen casting	✓	×
CPU	Dual-core Cortex-A72 + Quad-core Cortex-A53	Exynos4418 qual core ARM cortex A9
Storage capacity	4+64GB	1+32GB
LCD	8.0 inch fully laminated sunlight readable screen	8.0 inch
LCD resolution	1280*800	1280*800
Camera	Rear camera 800W pixels, auto-focus	Rear camera 500W pixels
Bluetooth	Bluetooth 5.0	×
External interfaces	RJ-45	×
External interfaces	HDMI✓	×
External interfaces	TYPE-A,TYPE-C	TYPE-A,TYPE-C
WiFi	Dual-band 2.4G/5GHZ	2.4G
VCI	STM32H723	STM32F407
VCI	CANFD built in✓	CANFD Adapter Required
VCI	DOIP built in✓	×
VCI	Fault Tolerant CAN built in✓	×
VCI	All other common protocol types	All other common protocol types
RFID	Built in✓	P001 Required
Remote Test	Built in✓	RT100 Required
Renault Converter	Built in✓	Renault Converter Required





unction Display
Main Page

Function Display
IMMO

Function Display
Remote Test

Function Display
RFID

Function Display
ECU Advanced

Function Display
ECU Flasher
