*PRE-ORDER* OBDSTAR ECU MASTER B Version for Motorcycle ECM/ TCM/ BCM Clone

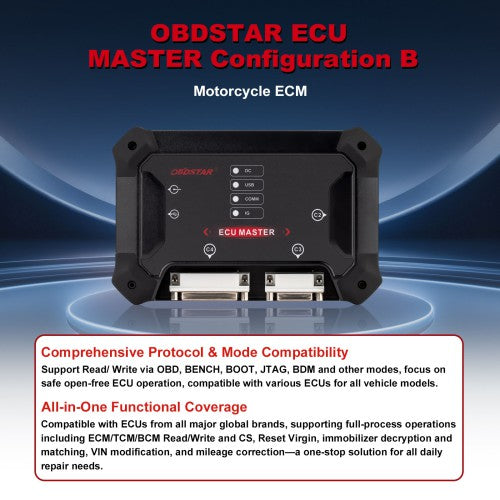

OBDSTAR ECU MASTER B Configuration – Professional Motorcycle ECU Flasher

*PRE-ORDER ONLY*

If you work on motorcycles and need a dedicated solution for ECM programming, ECU cloning, data transfer, and advanced motorcycle ECU functions, the OBDSTAR ECU MASTER B Configuration is built specifically for that job.

ECU MASTER B is the motorcycle-specific configuration of OBDSTAR's professional PC-based ECU programming platform. It supports 100+ motorcycle brands and 300+ motorcycle ECU types, giving motorcycle shops and technicians a much broader programming solution in one system.

This is a great option if your business focuses primarily on motorcycles and you don't need the passenger-car or heavy-duty configurations included with ECU MASTER A or C.

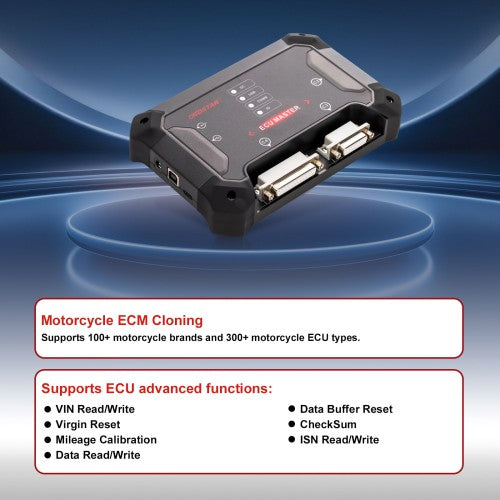

🏍️ Built Specifically for Motorcycle ECUs

ECU MASTER B is designed for motorcycle ECM work, including supported applications from major motorcycle manufacturers.

Depending on the ECU and model, supported functions can include:

• ECM Cloning
• ECU Read / Write
• Data Read / Write
• VIN Read / Write
• ISN Read / Write
• Virgin Reset
• Data Buffer Reset
• Mileage Calibration
• Checksum
• Other ECU-specific functions

Important: Functions vary by motorcycle, ECU type, and software coverage. Always check the current coverage before starting a specific job.

🔧 Motorcycle ECU Cloning

One of the main reasons to choose ECU MASTER B is its dedicated motorcycle ECU coverage.

The system supports cloning and data-transfer functions on selected motorcycle ECUs, allowing technicians to work with replacement modules when supported by the ECU MASTER software.

Current coverage includes 100+ motorcycle brands and 300+ ECU types, with coverage continuing to expand through software updates.

🔌 BENCH ECU Programming

ECU MASTER B supports BENCH programming for numerous motorcycle ECU platforms.

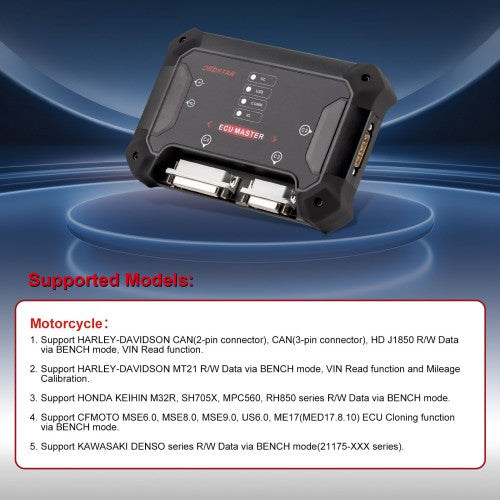

Examples of current supported applications include selected:

Harley-Davidson

• CAN 2-pin
• CAN 3-pin
• HD J1850
• MT21

Honda

• Keihin M32R
• SH705X
• MPC560
• RH850

CFMOTO

• MSE6.0
• MSE8.0
• MSE9.0
• US6.0
• ME17 / MED17.8.10

Kawasaki

• Selected Denso ECU platforms

These are examples of supported applications—not a guarantee that every model or ECU from these manufacturers is covered.

💻 Professional PC-Based Platform

ECU MASTER is a Windows-based ECU programming platform, giving technicians a larger PC interface for working with ECU data and programming functions.

The ECU MASTER platform is designed with anti-misoperation reminders to help technicians follow the correct programming procedure.

Operating System: Windows 10 or newer

🔄 Expand Your ECU MASTER Later

One advantage of the ECU MASTER platform is that you don't have to purchase every configuration at once.

You can start with Configuration B for motorcycles and add other configurations later if your business expands.

For example:

Configuration A → Passenger Cars & EVs
Configuration B → Motorcycles
Configuration C → Heavy-Duty Vehicles
Configuration D → Airbag / Battery / SAS Reset Functions

Additional configurations can be activated on the same ECU MASTER hardware.

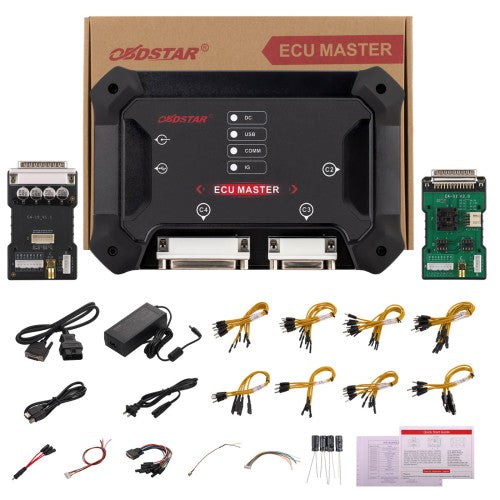

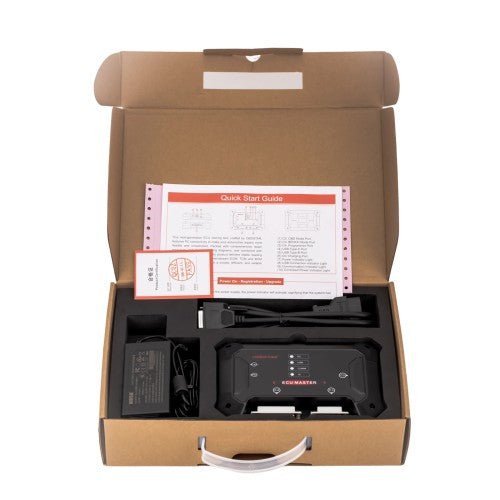

📦 What's Included

The ECU MASTER B package includes the ECU MASTER programming hardware and standard accessories required for the supported motorcycle programming functions.

Please note: Some specific motorcycle ECU jobs may require additional cables, adapters, or connections depending on the ECU being programmed.

⚠️ PLEASE CHECK COVERAGE BEFORE ORDERING

Motorcycle ECU programming is highly ECU-specific. Having a motorcycle brand listed does not mean every year, model, or ECU is supported.

If you have a specific job you need to perform, send us:

Year + Make + Model + ECU Part Number

We'll help you determine whether ECU MASTER B is the appropriate configuration before you purchase.

Why Choose ECU MASTER B?

If your shop works primarily with motorcycles and motorcycle ECUs, Configuration B gives you a dedicated ECU programming platform without requiring you to purchase the passenger-car or heavy-duty configurations you may not need.

Motorcycle ECU programming. ECU cloning. BENCH programming. One professional PC-based platform.
