GODIAG J2534 Passthru & ELM327 Diagnose J1979 Diagnostic Cable

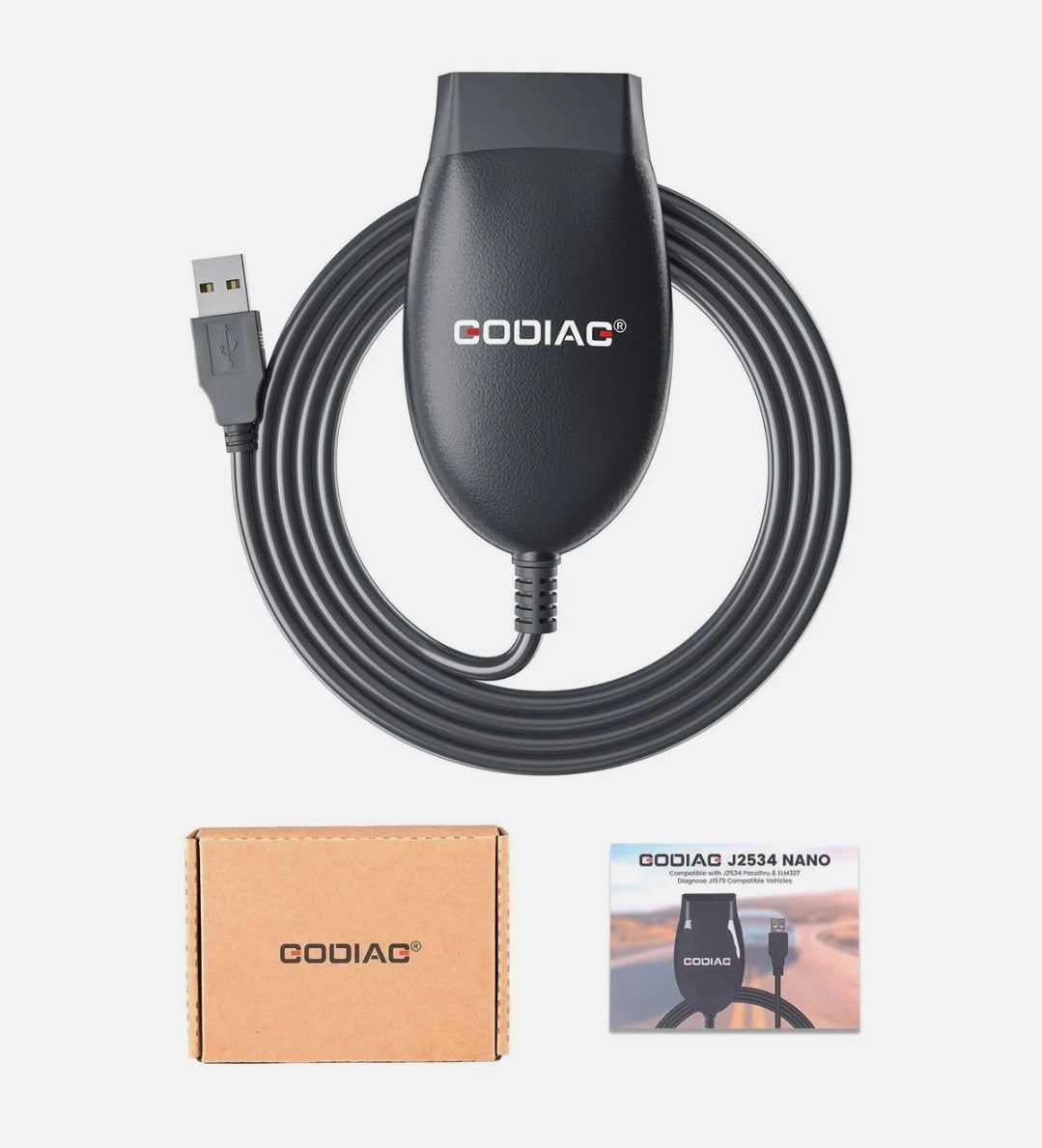

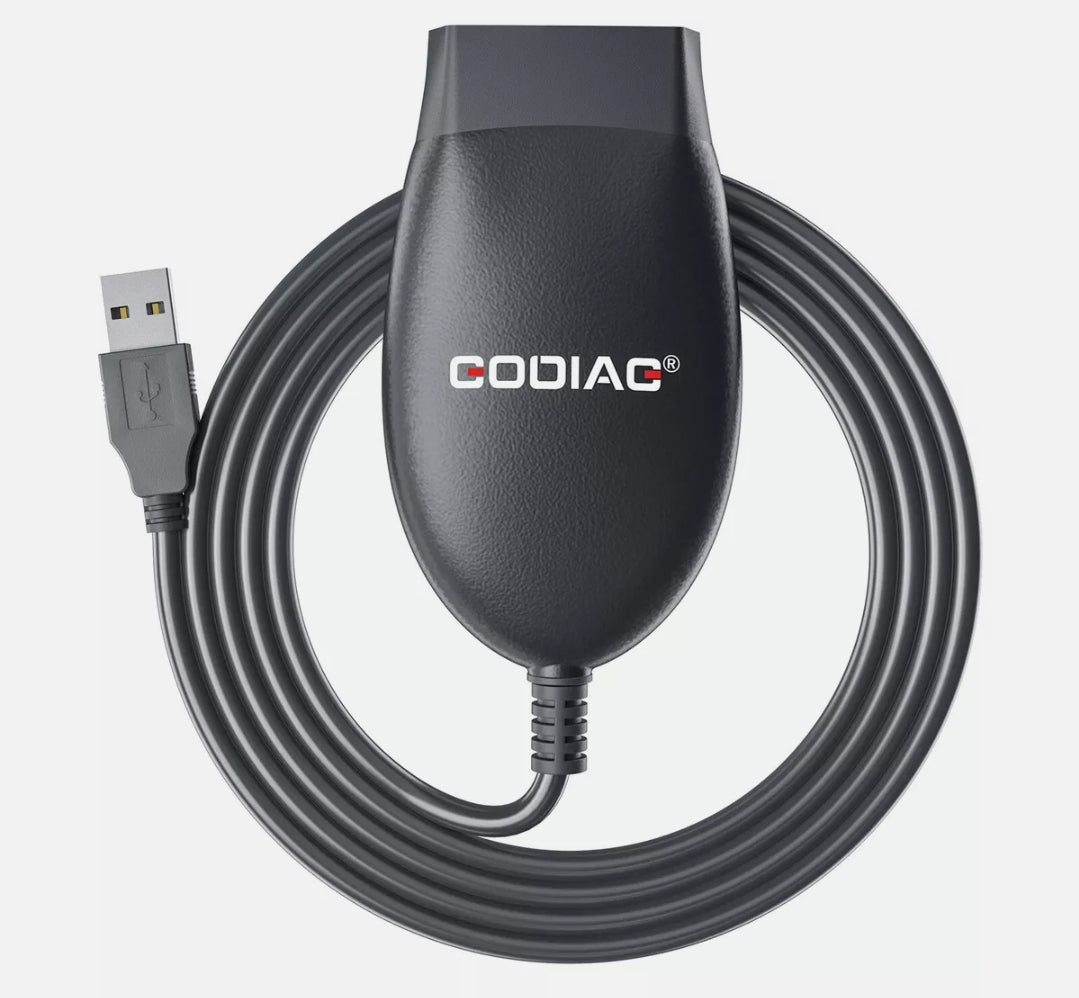

GODIAG GD101 J2534 & ELM327 2-in-1 Diagnostic Interface

Ships from Houston, Texas!

The GODIAG GD101 is a professional-grade interface that combines J2534 PassThru and ELM327 functions in one compact device—making it ideal for diagnostics, reprogramming, and coding across a wide range of vehicle brands and protocols.

---

🔧 Key Features:

1. Dual-Mode Operation – Seamlessly switches between J2534 and ELM327 modes based on software needs.

2. Broad Software Compatibility – Works with:

   • Honda HDS v3.104.024

   • Toyota Techstream v17.30.011

   • JLR SDD v163

   • Forscan v2.3.48

   • ScanMaster v2.1

   • VAG ODIS v9.1.0

   • Renault Can Clip V227 & V230
     (GM GDS2 supported – but not Tech2Win. No Volvo support.)

3. Comparable to Tactrix Openport 2.0 – Delivers similar functions with enhanced speed and stability.

4. Faster Communication & Reprogramming – Optimized performance for smoother, quicker workflows.

5. Stable & Reliable – Engineered to stay solid during programming without interruptions.

6. Compact & Portable – Lightweight design makes it easy to carry and use on the go.

7. Supports Windows 8 / 10 / 11 (32 & 64-bit)

8. Multi-Language Support – Includes various languages for ODIS, Toyota, Honda, JLR SDD, Forscan, and more.

---

⚠️ Important Notes:

• This device is for diagnostics and reprogramming only.

• Does NOT support GM Tech2Win software

• Not recommended for ECU programming tasks

• Volvo is not supported

• Always disable antivirus and firewall during installation to avoid issues

• While J2534 protocol is supported, compatibility depends on the vehicle and software used

---

📦 GODIAG GD101 Hardware Specs:

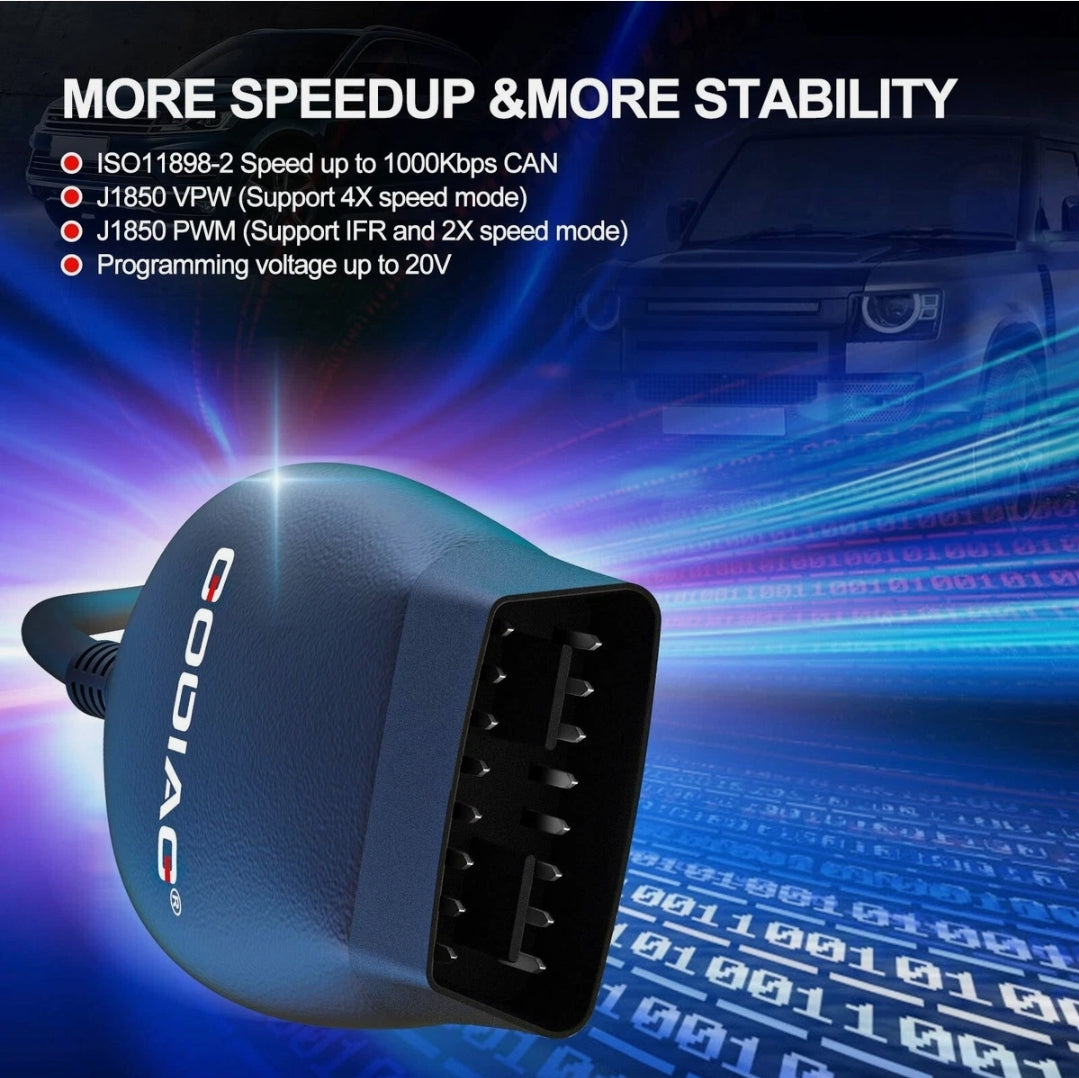

• High-Speed CAN: ISO11898-2 (OBDII PIN 6 & 14, up to 1000Kbps)

• K-Line: ISO9141 & ISO14230 (OBDII PIN 7 & 15)

• J1850 PWM & VPW Support (OBDII PINs 2, 10)

• Programming Voltage: Up to 20V (OBDII PIN 12 or 13)

• Short-to-Ground Protection: (OBDII PIN 9 → PIN 5)

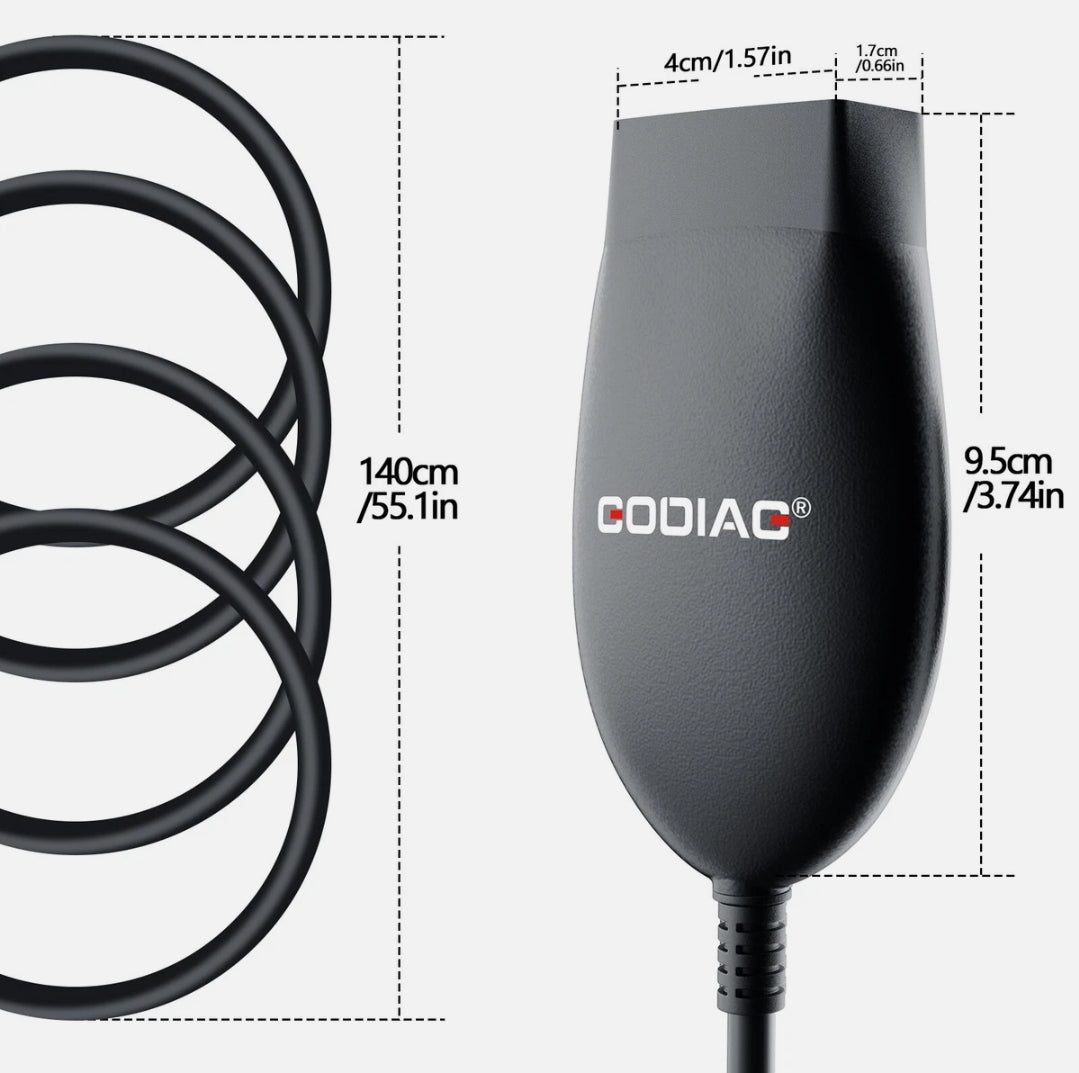

• Dimensions: 95mm x 55mm x 23mm

• Operating Temp: -20°C to 45°C (-4°F to 113°F)

• Input Voltage: 8–18V DC

• USB 2.0 Connectivity

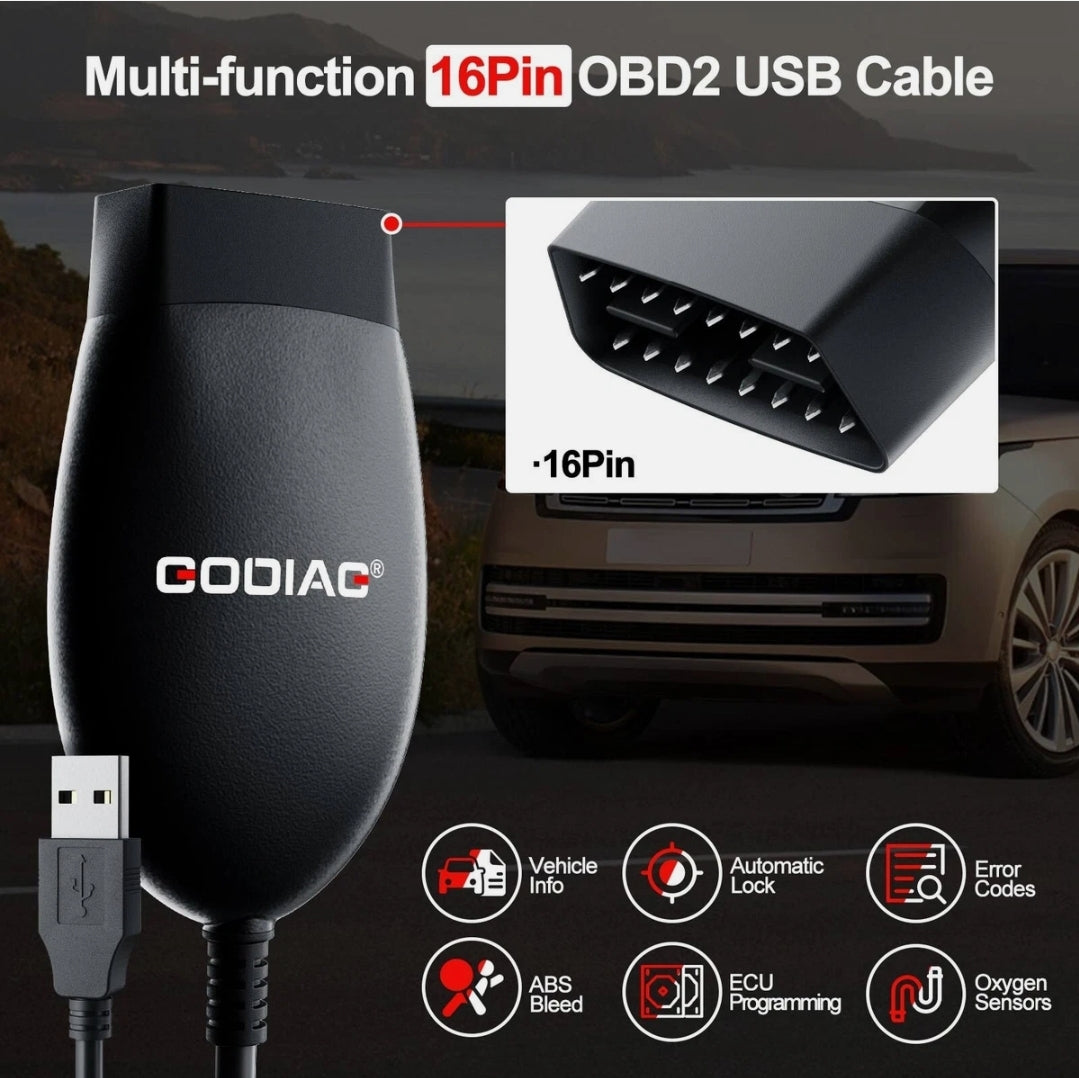

• DLC3 (OBDII-16) Molded Connector
