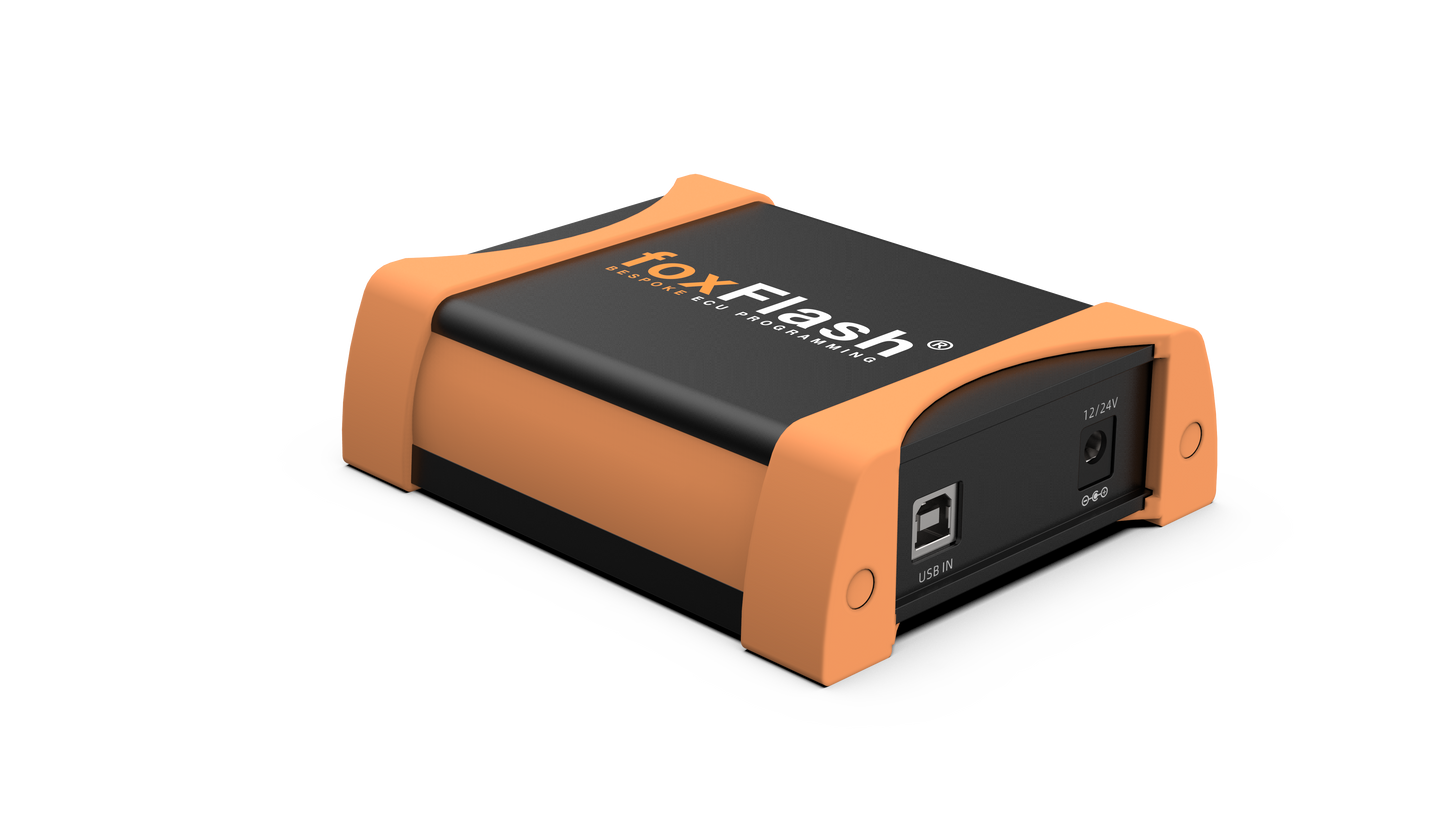

FoxFlash Super Strong ECU TCU Clone and Chip Tuning tool

We have partnered with and are now the Official USA based distributor for FoxFlash!  As always we are direct with the development team and can address any issue directly! Support is from us when you purchase here!



FoxFlash Highlights:

• Master version
• Full protocols open
• VR read online work (some ecu need to use our VR system, tool auto connects to our server download file )
• ECU can be restored to original if your ecu was damage or meet some bad tuning, use our tool can restore to original.
• Free update. No subscription, no annual fee.
• No VPN needed. Professional Online support, Faster server (1000M/S),.
• Supports WiFi hotspot, convenient for outdoor work
• Auto checksum
• Online support
• Two Years Warranty.
• Excellent technical support.
• Help desk and tuner account
• ECU and TCU connect wires with pdf
• Shipping from US/UK/EU, Fast & No Tax! (worldwide trans )
• Special functions
• Auto support eeprom and flash  checksum
• Support MEDC17 free clone service (most of others tool need patch the files after read out,but ours is free)
• Software can be download on official website: https://www.dfb-technology.com/
• With the Latest firmware and updates. Use better quality BOM and PCB. More stable, full proof, and reliable.
• FoxFlash ECU TCU Driver List or search ecu coverage on https://www.dfb-technology.com/driver-list.html
• Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish
• Foxflash Manager app can be installed up to 6 laptops
• IECUTOOL FOXFLASH SUPPORT WhatsApp Group: https://chat.whatsapp.com/IW9fCFC7OoP78oQvjXGOtQ

Note:

The factory can see what software the user uses.
If you use non-company software illegally, your machine will be locked.
You only can use the factory's software. If you use other illegal software,The machine will be locked and cannot be unlocked! ! !
In addition, if you disassemble the main unit casing without factory consent, you will no longer receive normal after-sales service!

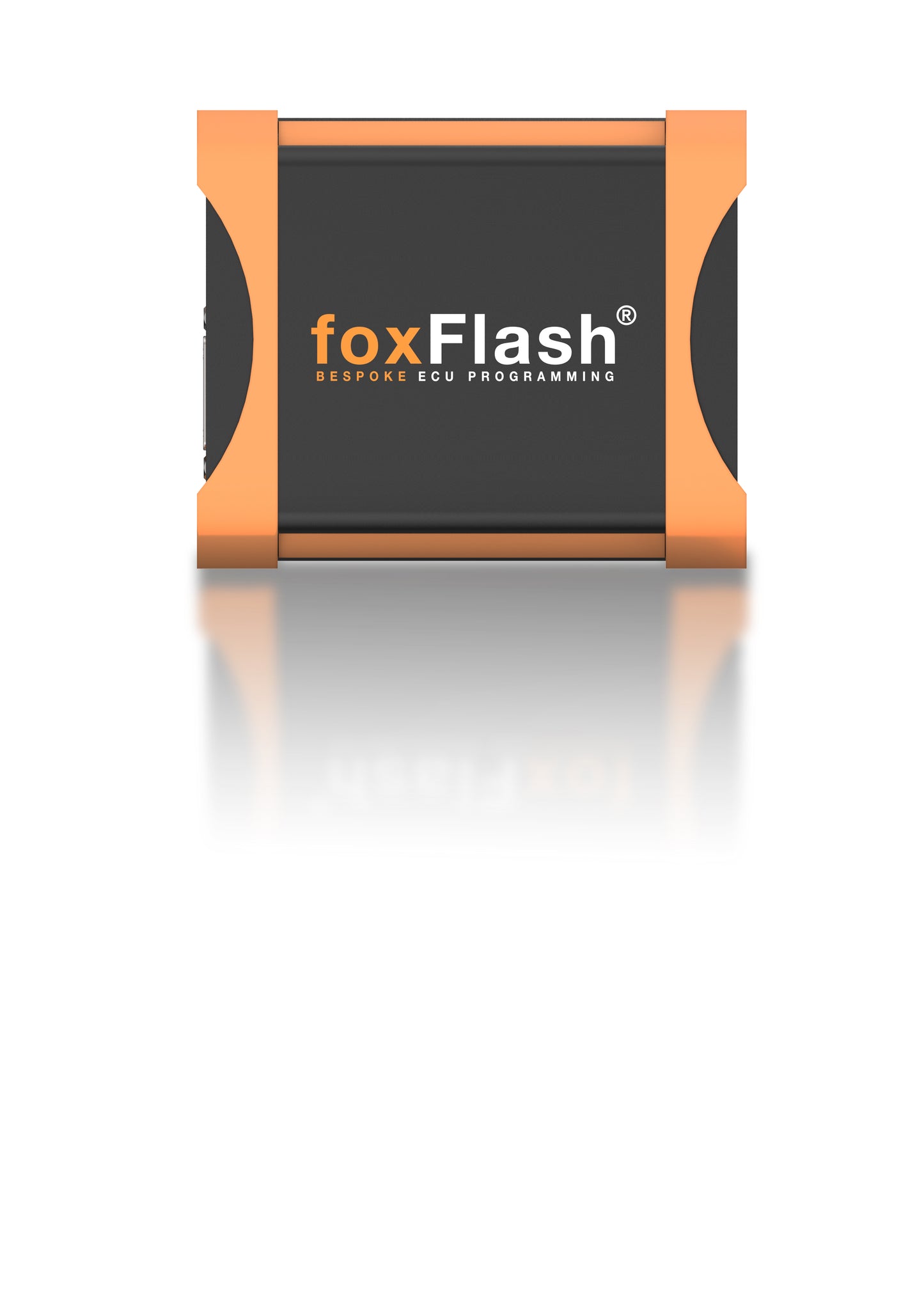

What's FoxFlash?
We’re proud to introduce you to foxFlash®, a new, unique and revolutionary tool for automotive professionals, tuners and engine calibration engineers.

FoxFlash is a powerful solution developed for professional chiptuners, calibration engineers and control unit (ECU and TCU) repair shops. foxFlash includes multi-method control unit programming for tuning ability, this tool from tuner design ,so you can get many of them support.

Since the foxFlash® is so much more than just an ECU programming tool, it simply can’t be compared to any traditional flash tool. Despite other tools how good, this is being good tools for read/write operations, we supply many important features, both on the developer side as in daily use. That is why we recommend foxFlash.


Quick start basics:
1. ensure good internet
2. Device connected and powered (should show in windows device manager)
3. open manager
4. click ACTIVE 4. DO NOT CLOSE MANAGER
5. Open foxflash app.
Note you may need to disable windows automatic time sync feature.

How to use foxFlash Manager and foxFlash software
How to activate foxflash? Click to view >>
FoxFlash ECU TCU Support List, Click to view >>

Some Youtube Videos for Foxflash user reference:

FoxFlash ECU/TCU programmer install？Click to view>>
FoxFlash - PCR2.1 Unlock in bench mode
FoxFlash - Write VAG EDC17C64 OBD with checksum
FoxFlash VW MED17 5 on bench
FoxFlash Connection to WiFi Hotspot

Foxflash Software Update Log:

Dec. 26th, 2023

Manager -VR file- Checksum fix -FW update


OBD VR file update:

MED17.5.25 DCM6.2A DCM6.2V DCM6.2C

PCR2.1 SIMOS18.1 EDC17C74

foxFlash Manager Update:

FW update to D086

Notifications add

Checksum fix:

Marelli 9DF

Marelli MJD602.M1 – 603.S3

Bosch   EDC17CP44

Dec. 6th, 2023

foxFlash Dev team is working on following operations:

Bench Beta Vesion protocols
TRW EMS
EMS 2.2 2.3 2.4 VOLVO TRUCK / RENAULT TRUCK
ACM / ACM2.1 MCM2 / 2.1

On the following TCU GEARBOX reference:
FORD POWERSHIFT 6DCT
GM-OPEL 6T3x
GM-OPEL 6T4x
GM-OPEL 6T5x
VAG DQ200 GEN1/GEN2
VAG DQ250
VAG DL501
VAG VL381

Nov. 15th, 2023

foxFlash is now able to perform the following operations:

New Clone Function
MEDC17
FCA
HYUNDAI
JAGUAR
LAND ROVER
SUZUKI
TOYOTA

On the following ECU reference:
BENCH
Delco E38 E67 E84 E92
BOSCH MG1CA007 MD1CS069 EDC17C11
BOSCH 6L45 6L50 6L80 6L90

BOOT
Siemens Continental SIM2K-305
BOSCH EDC17C11

OBD
Delphi DCM7.24
Delco E38 E92 E83 E80 E39A
Phoenix L40
BOSCH MD1CS069

OBD Unlock Patch GPEC2 & GPEC2A Nov. 2023

foxFlash is now able to perform the following operations:
OBD unlock patch
On the following ECU references:
Continental GPEC2 & GPEC2A
Jeep 2.4 Tigershark 184 hp
Jeep 3.2 Pentastar V6 275 hp
Jeep / Lancia 3.6 Pentastar V6 285 hp
Dodge 3.6 Pentastar V6 292 hp
Chrysler / Dodge / Jeep 3.6 Pentastar V6 296 hp
Chrysler / Dodge 3.6 Pentastar V6 305 hp
Jeep 3.6 v6 284 hp
Dodge 3.6 v6 305 hp
Fiat / Lancia 3.6 V6 280 hp
Dodge 5.7 V8 369 hp
Dodge 5.7 V8 HEMI 370 hp
Dodge / Jeep 5.7i 360 hp
Dodge 5.7i 390 hp
Dodge 5.7i 400 hp
Jeep 5.7i cylinder desact. 365 hp
Dodge 5.7i V8 eTorque 395 hp
Dodge 5.7i V8 HEMI 365 hp
Dodge 5.7i V8 HEMI 379 hp
Dodge 5.7i V8 HEMI 388 hp
Dodge / Jeep 6.1 SRT8 425 hp
Jeep 6.2 Hemi V8 707 hp
Dodge 6.2 V8 Hellcat 717 hp
Dodge 6.2 V8 SUPERCHARGED (TRX) 710 hp
Dodge 6.4 V8 410 hp
Chrysler / Dodge / Jeep 6.4 V8 SRT8 477 hp
Dodge 6.4 V8 SRT8 482 hp
Dodge 6.4 V8 Apache 492 hp

Method:
use BOOT TOOLS BOX
1: Read out the INTFLASH and EPROM
2: zip the file and send to us
3: we send back the patched file
4: user write back the Intflash
5:OBD then unlocked (some hptuner can direct tune car with this function).

Foxflash Manager V1.3.6 September 25, 2023

through which we will

1: Improve all VR databases.

2: Personal equipment customization.

3: Customize your brand tuning logo into the tool software. contact seller to get plugin.
(The cost is 360USD, It is expected to be completed within a week. NOT SUPPORT REFUND. It is a one-to-one customization.You need to give the serial number to the us and then we will return you a file package for upgrade.)

4: Special personal beta version customization and testing.

5: Private tool VR database, exclusive VR model database.

6:Special personal VR data needs to be opened on the official website and contact us through the online chat tool to assist you in updating the individual VR file database.

Update method:

Open foxFlash Manager software and it will automatically push the update. During this period, keep the USB connection of the device until the download is completed and reinstalled, you will see a new function.

New update for checksum fix  September 14, 2023

Update checksum for mcu TC1766 TC1793 TC1797 TC1724F TC1767
foxFlash is now able to perform the following operations:
software caculate checksum
On the following ECU reference:
Audi Bosch MED17.5 TC1766
Audi Bosch MED17.5.5 TC1766
Audi Bosch MED17.5.20 TC1766
Audi Temic VL381F TC1766
BMW Bosch EDC17C76 TC1793
Honda Bosch EDC17CP50 TC1797
Hyundai Bosch ME17.9.21.1 TC1724F
Jaguar Bosch MED17.9.7 TC1797
Kia Bosch ME17.9.21.1 TC1724F
Land Rover Bosch MED17.9.7 TC1797
Mercedes Bosch EDC17CP01 TC1796
Mercedes Bosch MED17.7.7 TC1793
Mercedes Bosch MED17.7.7 TC1797
Renault Bosch EDC17CP58 TC1767
Seat Bosch MED17.5 TC1766
Seat Bosch MED17.5.5 TC1766
Seat Bosch MED17.5.20 TC1766
Skoda Bosch MED17.5 TC1766
Skoda Bosch MED17.5 TC1766
Skoda Bosch MED17.5.5 TC1766
Skoda Bosch MED17.5.20 TC1766
Toyota Bosch EDC17C60 TC1793
Volkswagen (VW) Bosch ME17.5.6 TC1766
Volkswagen (VW) Bosch MED17.5 TC1766
Volkswagen (VW) Bosch MED17.5.5 TC1766
Volkswagen (VW) Bosch MED17.5.20 TC1766

How to Update Foxflash Software?

The update will auto sync from the server to your side.

Run the foxFlash manager, click the download button till everything done.

FoxFlash Compatible operating systems:

Windows 7
Windows 8/8.1
Windows 10
Windows 11
Recommended minimum requirements:
CPU > 2.5 GHz (Intel i5, i7)
RAM > 4GB
64 bits

We strongly recommend users to use online mode. The reasons are as follow:

1: We can help you check if your file is correct online.
2: The autochecksum can work online check too.
3: It is safer.
4: The online mode can check if your modifying is correct. If not, we can help to solve the problem.
5: The online mode can auto VR read and write from our server, which mean you can get the original file, and we can help you recover or save your broken ecu.

BTW, if you want to go out or work outside with our tool, just use your phone to turn on a hotpot, ours tool can work with hotpot. You will NOT need any VPN, for we have a wordwide server. No matter where you are, you can connect us.

The online work is easier and safer. Please do NOT let your ecu become a brick without using the online mode.

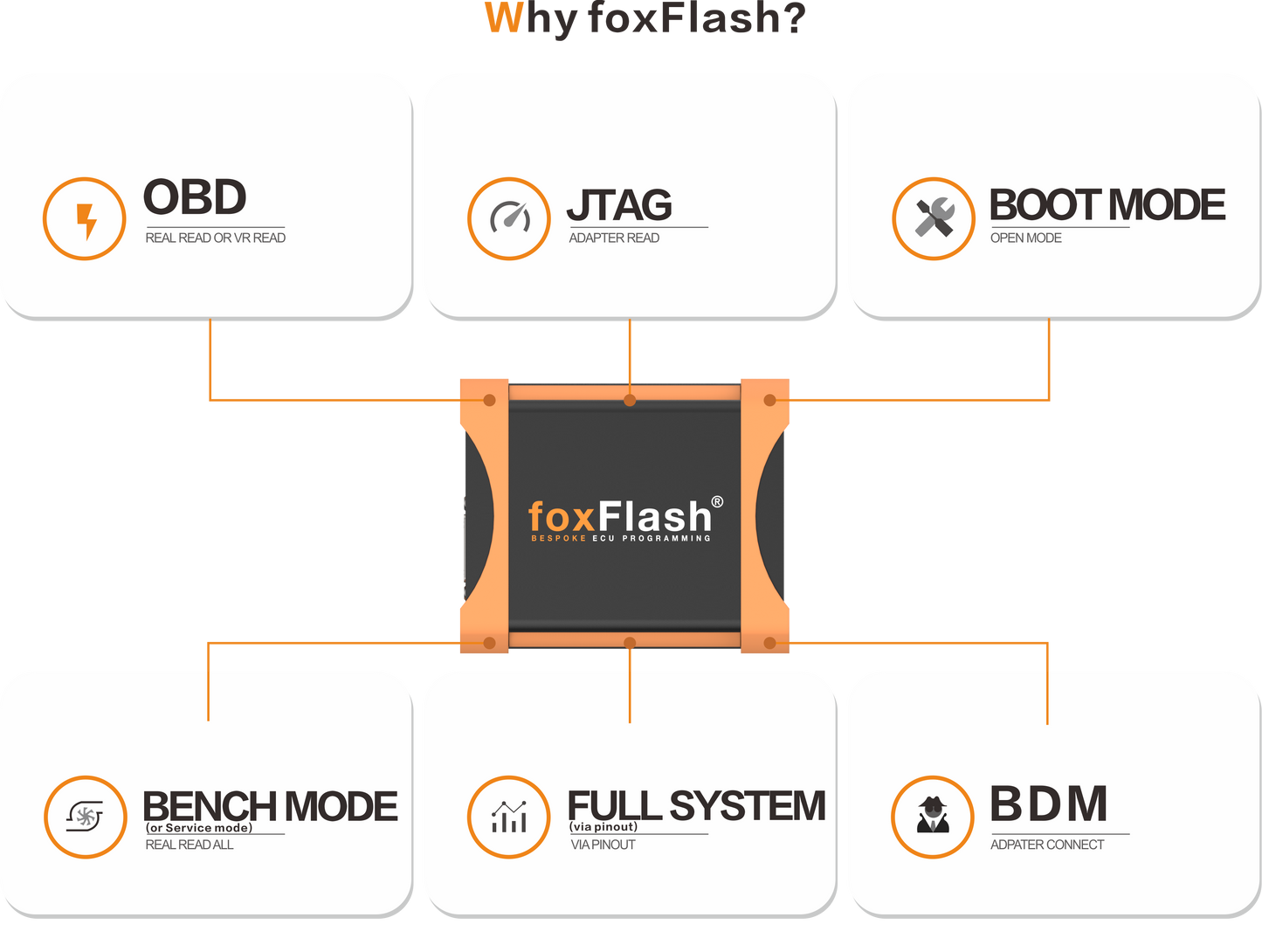

Fox Flash Operation Modes:

1: OBD mode：(read the data from Diagnostic port ,you need remove the ecu or tcu from car or open the ecu box , just read everything from car, we also support obd vr read, we supply original file from our server, you can direct obd vr read it )
2: BENCH mode: we also call it service mode,  you can use this mode clone or backup all ecu data, read the internal flash and external flash and eeprom data, so you can save a lot of money for clone ecu and tcu , you also can  clone tcu and chiptuning with this mode.
3: Jtag mode: open the ecu , and wire it or use ours adapter connect ecu ways,some of denso ecu always need use this mode for read and write .
4: Boot mode: open the ecu and always can backup everything , read the flash and eeprom , you can save some ecu cause your obd write failed, or some others reason cause the ecu dead.
5:Full system: you can read and write by pinout for  most of ecu and tcu
6: BDM mode: some of the ecu need read and write in bdm mode ,open the ecu and use ours adapter connect it

Fox Flash Software Supported Functions
ECU clone
TCU clone
Chiptuning
Stage1-stage4
Vmax off
Adblue and SCR off
DPF  OFF
Flaps OFF
popbangs
gearbox data to adjust LC
sport display
immo off
dpf off
dtc off
GPF/OPF Removal
DPF Removal
EGR Removal
DTC Removal
ADBlue Removal
HOT Start Fix
IMMO Removal
Readiness Calibration
Flaps / Swirl Removal
TVA Removal
Sport Displays Calibration
Cold Start Noise Reduction
Kickdown Deactivation
StartStop Disable
MAF Removal
Speed Limiter Removal
Torque Monitoring Disable
Burbles Activation
Popcorn Activation
EVAP Removal
Exhaust Flap Removal
SAP Removal
AGS Removal
BMS/BPCM
Lambda/O2 Removal
Launch Control
OBD Reading Protection
Boost Sensor Calibration
LC, AL and NLS for MED9.1
Checksum Fix
vmax, swirl off
restoring ECU or TCU factory setting service
VIN fix (EEPROM support checksum , so you can easy change VIN then write back )

FoxFlash Tool Support types:

• CAR
• TRUCK
• MOTORBIKE
• TRACTOR
• BOAT
• Additional TCU package available for Automatic Transmissions.

Supported Winols damaos supply

As we all know,winols damaos and A2L is very expensive,we supply these to ours customer as free, so you can get it for chitpuning , dtc off, and so on

Compatibility
Supported Control Units
We believe a control units list can be considered as a more safe approach to correctly target the overall tuning procedure due to the fact that a lot of brands offer identical car models & versions that share different Control Unit types.

Please note that foxFlash can help you select the right protocol with its auto-detection feature during identification on most control units.

Multiple connection possibilities:
EXAMPLES OF CONNECTION IN FULL SYSTEM BOSCH / DELCO / DELPHI / DENSO / MARELLI / SIEMENS / CONTINENTAL / TEMIC

BENCH CONNECTION

BDM CONNECTION

JTAG CONNECTION

BOOT MODE CONNECTION

BENCH CONNECTION WITH AUTOMATIC GEARBOX


Foxflash full package dispaly:
Hardware:

1pc x Master machine
1pc x Fox bench box
1pc x USB cable
1pc x Power adapter
1pc x Fox box store over 10 adpaters
1pc x Jtag and bdm cables
1pc x Pen
1pc x Notebook
1pc x Suitcase
1pc x Function cable for boot, bench, kline links .
1pc x Truck OBD cable
1pc x Car OBD cable
1pc x Paper box
1pc x Install guide

Software:

1pc x  Main software
1pc x  Technical Support
1pc x  Login account for software and tools
1pc x  PDF pacakges for connecting ecu and tcu
1pc x Join facebook group for support
1pc x Online chat support for use

Extra pacakge according to users request after the user get the tool.

1pc x Tuner account
1pc x Helpdesk
1pc x WinOLS damaos, A2L

NOTE: Send your register email to info@dfb-technology.com to activate your account. Then download free damos files.

IECUTOOL FOXFLASH SUPPORT WhatsApp Group: https://chat.whatsapp.com/IW9fCFC7OoP78oQvjXGOtQ


FoxFlash Positive TEST Review:
Toyota Denso MB175800 Works Perfectly:)
EDC17CP45 BMW X6 D40 bench reading ok
Audi A3 8V 1.6TDI 110HP 2014 – EDC17C64 OBD – Read/Write/VR – OK Checksum: WinOls
Opel corsa d DELCO E83 full mode R/W dtc off, CS ok with ori file
Test on Maxus EDC17C53 reading successful.
PSA valeo j34p Boot mode R/W ok 896kb, Via boot mode car it’s starting !!!
Edc16c34 program disable while uploading, reads ok.
EDC16CP31 BENCH DPF OFF R/W PERFECT
Opel Vauxhall Vivaro 1.6 CDTI EDC17C84 R/W Fine Chks Fine
Reading and writing ok and without problems, EDC16C9, opel vectra 1.9 diesel
Renault trafic EDC17C84 BENCH READ/WRITE OK CHEKSUM OK
Peugeot 508 hybrid diesel dcm6.2 READ/WRITE OK
BMW E90 EDC16CP35 READ/WRITE OK
Suzuki Swift ME 17.9.6 read flash + eeprom ok
Audi A5 2.0TDI EDC17C46 Read/write all OK! Full backup bench mode Stage 1 DPF off
Bosch Med 17.5.5 VW Scirocco 1.4 TSI 160CV Bench R/W – OK
Bosch Edc 16cp34 Audi A6 3.0 233cv Bench R/W – OK
AUDI EDC17 C64 bench perfect READ AND WRITE,Checksum calculated with foxflash
Read / write EDC16cp34 2.5Tdi VW Crafter
Read / write CRD2 MB Sprinter
Read / write EDC16cp31 V6 CDI Sprinter
Read / write EDC17CP01 V6 CDI Sprinter
Read / write EDC15VM+ VW LT 2.5 TDI
All bench and all car was done on the road!
Ford Transit sid211 Read/write/cs- ok
Fiat Panda 1.3 multijet 9df full system R/W ok
Ranult clio 1.5 edc17c42 bench R/W ok
Range rover evoque medc17 bench R/W ok
Great point 1.3 multijet 6f3 full sytem R/W ok
Toyota yaris 1.4 90cv – EDC16C10 Read ok, write OK, checksum ok
Opel mokka delco E97 full system R/W ok
Citroen Berlingo 1.6 HDI 2013 – EDC17C10 Read ok, write OK, checksum ok
Opel Corsa 1.3CDTI 2008 – MJD603.S7 Bench Full – Read/Write/Checksum OK, Read Flash 4min, Write Flash 4min
Opel Vivaro edc16cp33 – ecu clone. I used 2nd type of connection on brown wire for mpc561/562
Citroen C4 1.5HDI 2019 – MD1CS003 Bench – Read/Write/Checksum and Tprot done by tool OK Read 3.00min Write 1.35min
MAN TGA EDC7C3 bench r/w ok
Citroen EDC16CP39 bench r/w ok
Opel edc17c59 BENCH Read ok, write OK, checksum ok
EDC16CP34 Audi R/W like a charm
LAND ROVER FREELANDER 2 2.2D EDC16CP39 OBD R/W CHK OK
CITROEN C4 1.5HDI MD1CS003 BENCH R/W CHK OK
CITROEN JUMPER 2.0HDI DCM6.2C OBD R/W CHK OK
MERCEDES BENZ B180 EDC16C31 BENCH R/W CHK OK
Fiat Panda 1.3 multijet 9df full system R/W ok
Ranult clio 1.5 edc17c42 bench R/W ok
